Ride height remote lead

UK PROFESSIONAL DRIVERS FORUMS THE UK PROFESSIONAL DRIVERS FORUM (INTERACTIVE)
1

Hi, guys
can any one point me in the direction of the operating instructions of the ride height remote lead found in the new actros, i saw a you tube vid on it a while back but i just cant retrace it.

thanks in advance.

2

Easy , how about the trucks own hand book if still in truck
Or turn ignition on press right arrow twice to select outer 2 red lit arrows then press either top or bottom arrow depending which way you want to go and when you hit right height then press red stop in centre , then to get ride height push button on dash under radio

Sent from my iPad using Tapatalk

3

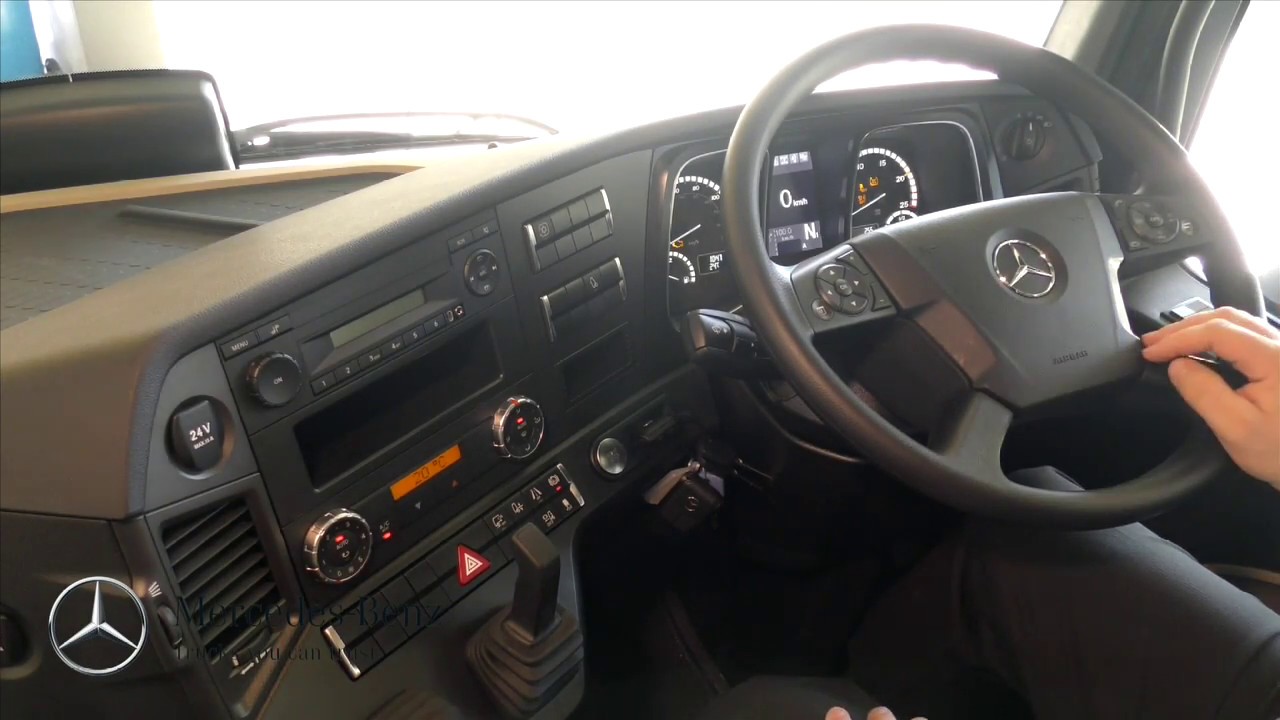

You could try this video.

If you have Air Suspension front and rear you’ll get three red arrow adjustment positions for front, all and rear, just scroll through with the button.

4

Could try this video, however I’ve watched it several times now and still can’t find the part where the ECAS system is demonstrated. :laughing:

5

.

6

usual answers, but, thanks perfect…

7

heliguy10:
Hi, guys
can any one point me in the direction of the operating instructions of the ride height remote lead found in the new actros, i saw a you tube vid on it a while back but i just cant retrace it.

thanks in advance.

I use Mercedes Benz guide from App Store if you’ve got iPhone don’t know if it’s available on Android I can find out most things from there

8

The best feature on a actros is the ability to operate air sus via the dash and steering wheel buttons, makes regular trailer swaps a doddle.
